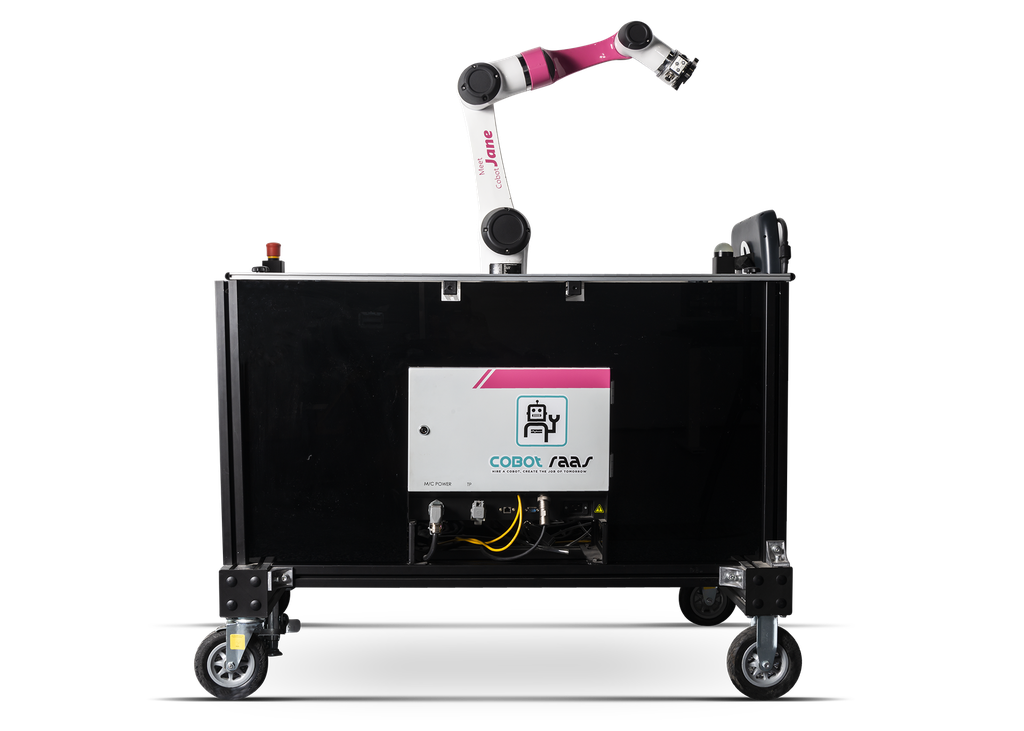

Cobot-Jane
US $ 450.00
Price per week under a 3 years contract
https://www.cobotraas.com/
Weight : 23 Kg
Payload : 5 Kg
Reach : 800 mm
Power: 180W in typical cycle
| TYPE | COBOT JANE |
| Weight | 23KG |
| Payload | 5 KG |
| Reach | 800 mm |
| Power | 180W in typical cycle |
| Joint range | ±360° |
| Joint speed | J1-J4 180°/S J5-J6 200°/S |
| Tool speed | 2m/s |
| Repeat | ±0.05 mm / ±0.03 mm (under normal conditions |
| Degree of freedom | 6 |
| Control box size | 536 * 445 * 319 mm |
| End I/O port | digital input：3，digital output：3，analog input:2 |
| Control box I/O port | digital input：16，digital output：16, analog input:2，analog output：2 |
| I/O source | 24V 2A |
| Communication | TCP / IP / MODBUS |
| Programming | graphical programming, remote process call |
| IP classification | IP54 / IP66 |
| Collaborative operation | 10 advanced configurations for safety |
| main material | aluminum alloy |
| Working temperature | 0-50℃ |
| Power input | 110-240 V AC, 50-60Hz |
| Cable | cable to connect the control box: 5m cable to connect teach pendant: 5m |
